Description
Water-based industrial anticorrosive coatings play a pivotal role in safeguarding metal structures across the oil & gas, marine, and heavy machinery sectors. However, manufacturers consistently grapple with two fundamental challenges: inadequate adhesion to metal substrates, which often results in coating peeling, and insufficient corrosion resistance, leaving structures vulnerable in harsh environments like salt spray conditions or chemical exposure. Ultra-fine kaolin powder with hydrophilic treatment has emerged as a highly effective solution, leveraging its unique properties of ultra-fine particle size, surface hydrophilic modification, and chemical inertness to address these pain points.
Unlike standard fillers that may settle in aqueous coatings or diminish corrosion performance, this specialized kaolin powder significantly enhances both adhesion and corrosion resistance while preserving the low-VOC advantage characteristic of water-based systems. As a result, it has become an essential component in the formulation of high-performance anticorrosive coatings.
Adhesion Enhancement Mechanisms
The adhesion of coatings to metal substrates forms the cornerstone of effective anticorrosive protection. Without robust adhesion, moisture and corrosive agents can easily penetrate the interface between the coating and the metal, triggering under-film corrosion. Ultra-fine kaolin powder with hydrophilic treatment, characterized by a particle size D50 ranging from 0.5-1.2 μm (12000-20000 mesh), improves adhesion through multiple mechanisms.
Firstly, its ultra-fine particles fill the micro-pits on metal surfaces created by processes such as sandblasting or chemical treatment, establishing a "mechanical interlock" between the coating and the substrate. Secondly, the hydrophilic surface treatment, achieved using polycarboxylate-based dispersants, enhances compatibility with water-based resins. This ensures uniform dispersion and a tight bond to metal oxides.
When incorporated at 12%-18% of the coating weight and mixed with epoxy or acrylic water-based resins, the kaolin powder can increase adhesion strength (ASTM D4541) from 3 MPa to 5.5-6.2 MPa. It can also achieve a 5B adhesion rating (no coating removal) in cross-cut tests. A real-world example from a coating manufacturer in Jiangsu, China, demonstrates its effectiveness. When used in marine anticorrosive coatings, tests on steel plates showed no coating peeling after 1000 hours of immersion in seawater, compared to only 300 hours for coatings without kaolin. In the oil & gas pipeline sector, the enhanced adhesion protects the coating from damage during welding and burial processes, reducing maintenance costs by 40% over a 5-year period.
Corrosion Resistance Improvement
Corrosion resistance is the ultimate objective of industrial anticorrosive coatings, and ultra-fine kaolin powder with hydrophilic treatment significantly elevates this performance. Its plate-like particle structure creates a "tortuous path" within the coating film. This effectively slows down the penetration of corrosive agents, including salt, water, and chemicals, to the metal surface.
When added to water-based coatings, the kaolin powder can extend neutral salt spray resistance (ASTM B117) from 500 hours to 1200-1500 hours, easily meeting the corrosion requirements for offshore steel structures. A heavy machinery manufacturer in Germany conducted tests on excavator buckets coated with a formulation containing this kaolin powder. After 800 hours of salt spray exposure, the steel surface exhibited only 5% rust coverage, compared to 40% for unmodified coatings.
The kaolin powder also bolsters chemical resistance. Coatings with 15% of this powder can withstand 30 days of immersion in 5% sulfuric acid and 10% sodium hydroxide solutions without blistering or discoloration, making them ideal for use in chemical processing plants. Moreover, its high whiteness (L* value ≥94%) allows it to substitute part of titanium dioxide (TiO₂) in white anticorrosive coatings, reducing raw material costs by 15% without sacrificing opacity.
Precision Production Process

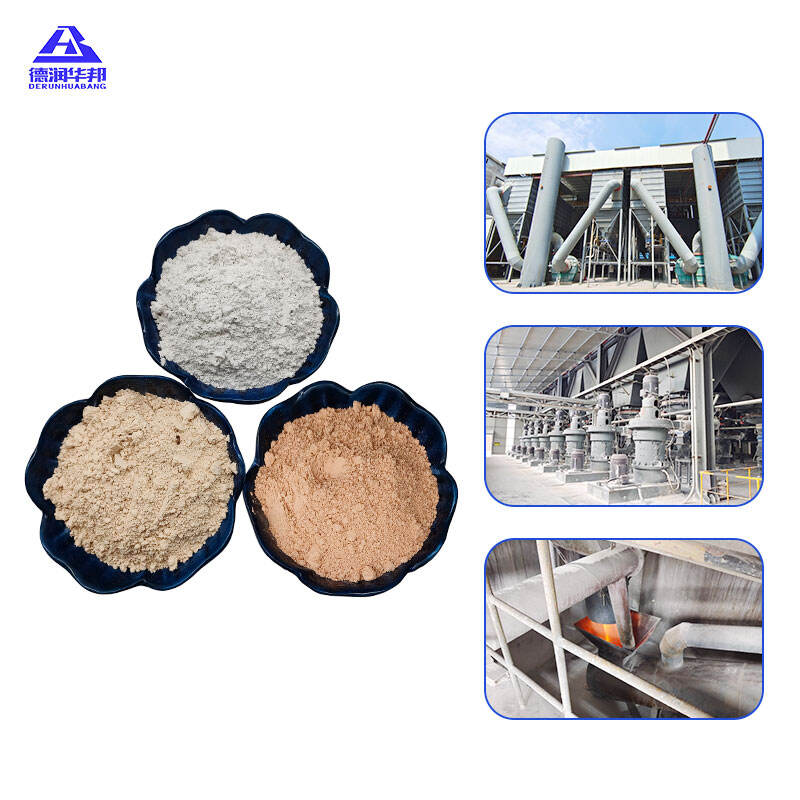

The production of ultra-fine kaolin powder with hydrophilic treatment for water-based industrial anticorrosive coatings involves a series of precise steps to guarantee optimal performance. Raw kaolin ore, sourced from high-purity deposits in regions like Jiangxi, China, and South Carolina, USA, undergoes initial washing to eliminate sand and organic impurities. Magnetic separation at 20,000-25,000 gauss removes iron-bearing minerals that could potentially promote corrosion.
Subsequently, wet grinding using high-pressure homogenizers operating at 1800-2200 bar is employed to achieve the desired ultra-fine particle size. The crucial hydrophilic treatment step utilizes polycarboxylate dispersants, applied at a dosage of 1.0%-1.5% of the kaolin weight, to coat the particles. This ensures they remain dispersed in water-based resins without agglomeration.
The slurry then undergoes ultracentrifugation to remove any coarse particles (≥2 μm), which could create weak spots in the coating. Finally, the slurry is spray-dried at 190-230°C to produce a free-flowing powder with a moisture content ≤0.2%. The powder is packaged in airtight aluminum foil bags to prevent moisture absorption during storage.
Tailored Technical Parameters
The key technical parameters of this kaolin powder are meticulously tailored to meet the requirements of water-based anticorrosive coatings. These include a particle size D50 of 0.5-1.2 μm, hydrophilic treatment coverage ≥98% (verified through contact angle measurement with a water contact angle ≤30°), whiteness (L* value) ≥94%, iron content (Fe₂O₃) ≤0.15%, oil absorption of 23-28 mL/100g, and viscosity (50% solids in water) ≤250 cP.
These parameters are rigorously validated through various tests. Laser particle size analyzers are used to determine particle distribution, X-ray fluorescence (XRF) for chemical composition analysis, and salt spray chambers for coating performance validation. Each batch is accompanied by a Certificate of Analysis (CoA) confirming compliance with industry standards such as ISO 12944 (Paints and varnishes—Corrosion protection of steel structures by protective paint systems).
Optimized Supply Chain Support

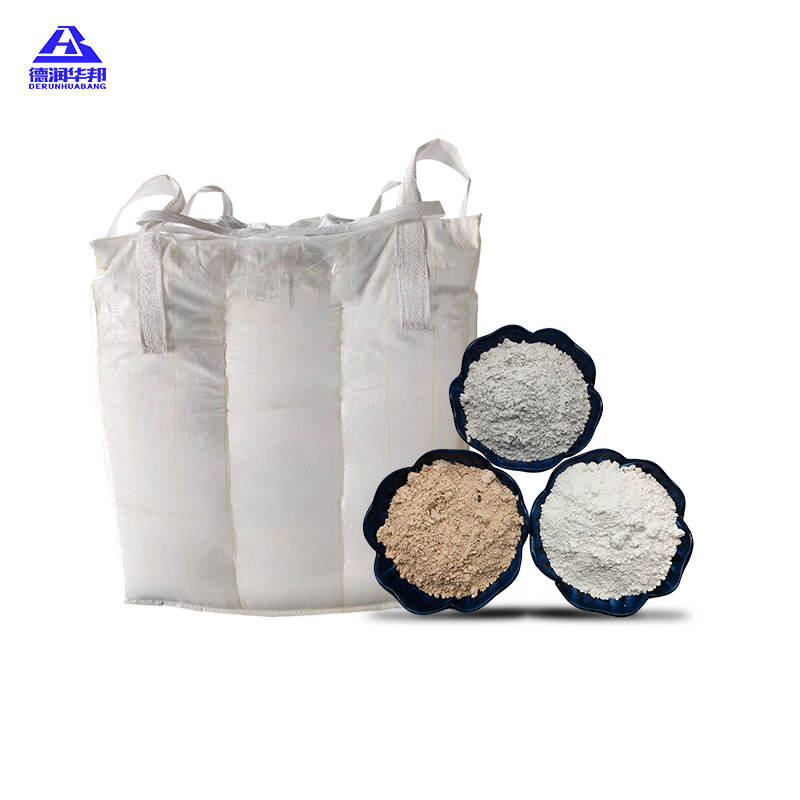

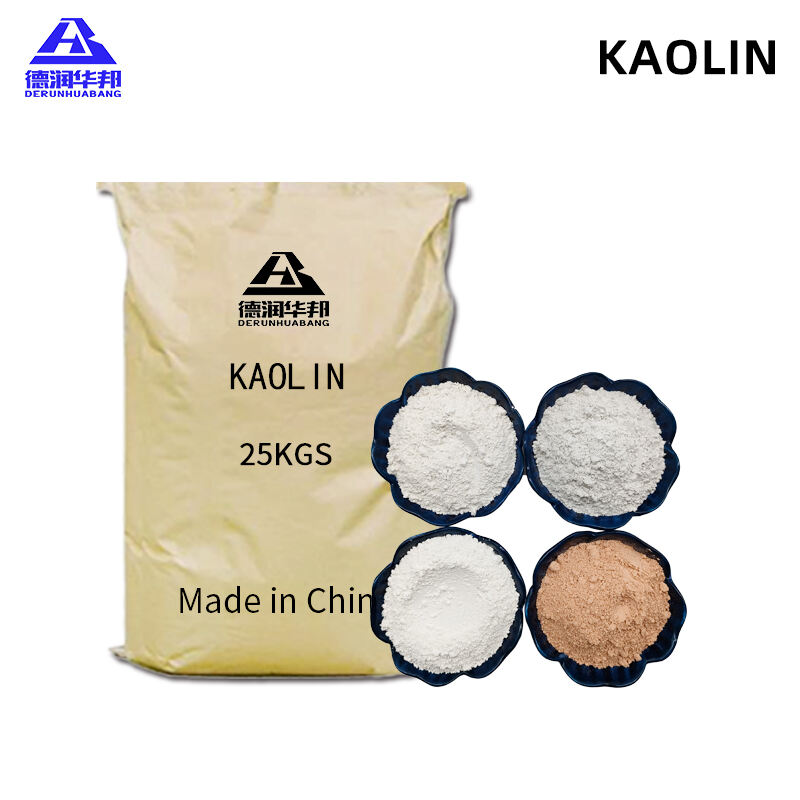

The supply chain for this kaolin powder is optimized to align with coating manufacturers' production cycles. Packaging options are diverse, including 25kg vacuum-sealed bags for small-batch trials and 500kg bulk containers for large-scale production. Inner liners are used to prevent powder contamination during storage and transportation.
Shipping is coordinated with logistics providers specialized in chemical materials, such as Maersk and Hapag-Lloyd, ensuring reliable delivery to key industrial hubs in Asia, Europe, and North America. Lead times vary, ranging from 10-14 days for Southeast Asia to 28-35 days for Europe.
Technical teams offer on-site support, including assistance with coating formulation optimization. For example, they recommend 15% kaolin powder for marine coatings and 12% for industrial machinery coatings. They also provide troubleshooting services, such as resolving agglomeration issues by adjusting the dispersant. For customers new to the product, 50-100kg sample batches are available, accompanied by coating performance testing (adhesion, salt spray) to verify compatibility with existing resin systems.
As industries increasingly prioritize eco-friendly anticorrosive solutions without compromising on performance, ultra-fine kaolin powder with hydrophilic treatment has become an indispensable material. Its capabilities in enhancing adhesion, boosting corrosion resistance, and reducing costs enable coating manufacturers to comply with strict environmental regulations and industrial standards. This, in turn, strengthens their competitiveness in the global markets for protecting assets in the oil & gas, marine, and heavy machinery industries. Its applications continue to expand, driving innovation in the field of water-based industrial anticorrosive coatings and solidifying its position as a game-changing ingredient in the industry.
×
